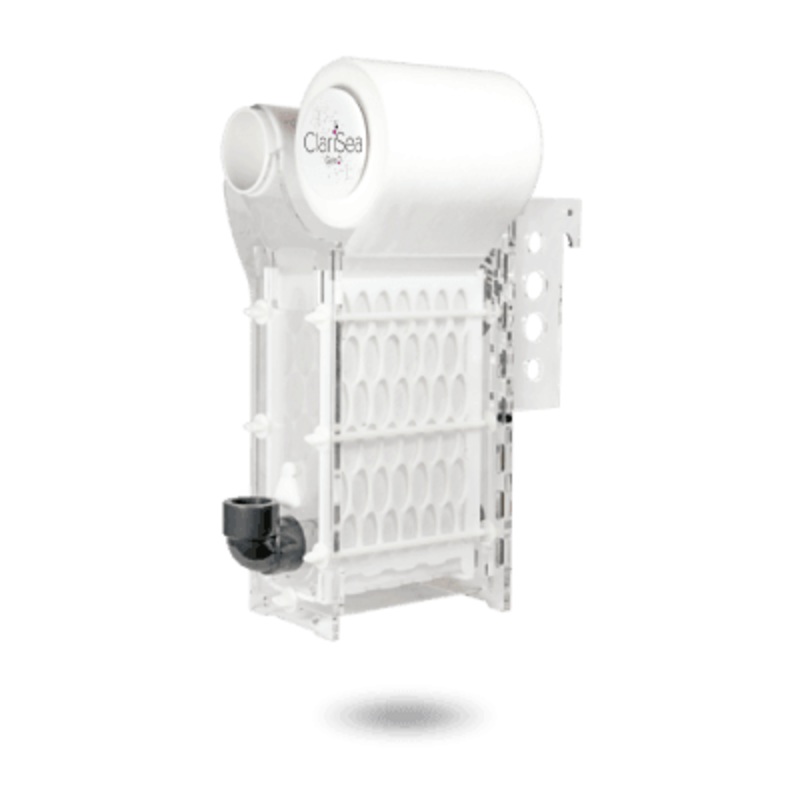

Clarisea SK-5000 Gen 3

ClariSea SK-5000

The ClariSea fleece filter is a high efficiency water filtration system which effectively removes suspended particles such as micro algae, detritus, food, organic waste and debris from the water column. Suitable for use in marine aquariums, freshwater aquariums, fish-breeding systems and propagation systems for corals.

BRILLIANTLY CLEAR WATER
A ClariSea filter will completely replace the need for high maintenance filter socks and result in crystal clear aquarium water.

LIGHT PENETRATION
The use of a ClariSea fleece filter will ensure the highest possible filtration efficiency for optimal light penetration to enhance growth of your corals and plants.

REDUCED ACCUMULATION OF ORGANIC WASTE
Continuously removes detritus & organic waste from the water column preventing breakdown to nitrate & phosphate in your aquarium.

REDUCED LOAD ON PROTEIN SKIMMER
The ClariSea fleece filter dramatically reduces the load on your protein skimmer by removing even the smallest of particles.

REDUCED MAINTENANCE
Constant filtration results in reduced maintenance of pumps, wave makers and protein skimmers, plus… no more socks to clean.

NO MORE DETRITUS
A ClariSea fleece filter will noticeably reduce the accumulation of detritus in your aquarium substrate and sump.

Features

• High volume filtration capacity
• Minimal installation footprint
• Completely replaces the need for filter socks
• Self-assembly for easy cleaning
• Multiple installation options
• Manual advance of fleece (upgradeable to automatic advance)
• Phosphate free fleece material
• Special low-odour fleece material
• Integrated fail-safe overflow
• Silencer plates for quiet operation
• Water bypass system

Specifications

• flow rate: up to 5,000 l/h (1320 US gph)
• Particle size removal: down to 20 microns
• Maximum submerged water depth: 20cm (8)
• Hang-on bracket height adjustment: up to 12cm (4)
• Maximum sump glass thickness for hang on bracket: 13mm (1/2″)
• Recommended aquarium sizeat 5 x tank turn over (5000l/hr) = 1000lt
• Recommended aquarium sizeat 4x tank turn over (5000l/hr) = 1250lt
• Inlet connection: 32mm ( 1″ fitting for the U.S ) :Clickherefor pipe sizing information
• Filter fleece: 15cm (6) width length 40m (131ft)

Smart Controller Functions

Buttons & FunctionsMotor button Manually advances fleece motorAlarm button
Press alarm button for 1 – 2 seconds this will turn off the audable alarm.Alarm conditions will still be present.

• Red LED still flashing
• Automatic advance of fleece disabled.
• Motor button will still function as manual advance.

Pressing the alarm button for > 5 seconds:-

• Full reset– completely clearing alarm state
• Disconnecting power: performs reset as above.

Normal OperationInitialisation (Power on or reset): Blue/Red LED both flash for 5 times (audible alarm will sound with each flash) Blue LED will remain on.Motor Advance:Manual or automatic, Blue LED flashesPossible Alarm Conditions:Possible roll jam/motor failure (float held in up position for more than 5 seconds) Red alarm LED will flash Audible alarm will sound for 2 seconds every 5 seconds Automatic advance of fleece disabled.Possible fleece empty (float not triggered within 8 hours) Blue/Red LED both flashing, audible alarm will sound for 1 second every 2 seconds Automatic advance of fleece disabled.Possible installation error (float not triggered with 48 hoursafter initial set-up or reset) Red LED will flash at 10 second intervals (audible alarm will sound with each flash) Automatic advance of fleece disabled.
